Enabling high speed coherent
& broadband access

SMART Photonics, the leading foundry for integrated photonics, expands its integration platform portfolio, by adding the new high speed >50GHz modulator, opening the route to >100 GBaud coherent transmission.

By combining our existing, large portfolio of components with this modulator, our high gain SOA and narrow linewidth tuneable laser, we enable a low cost, single chip, high speed coherent transceiver.

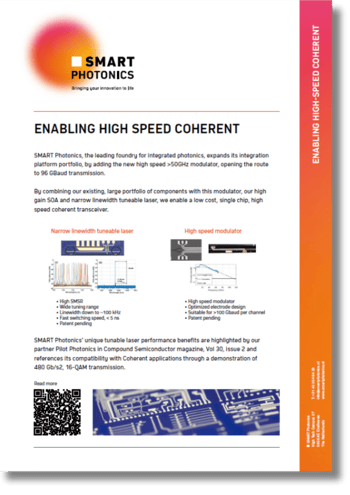

HSC leaflet HS-1

>50GHz Modulator + High Gain SOA
+ Narrow Linewidth Tuneable Laser
All integrated on a single chip

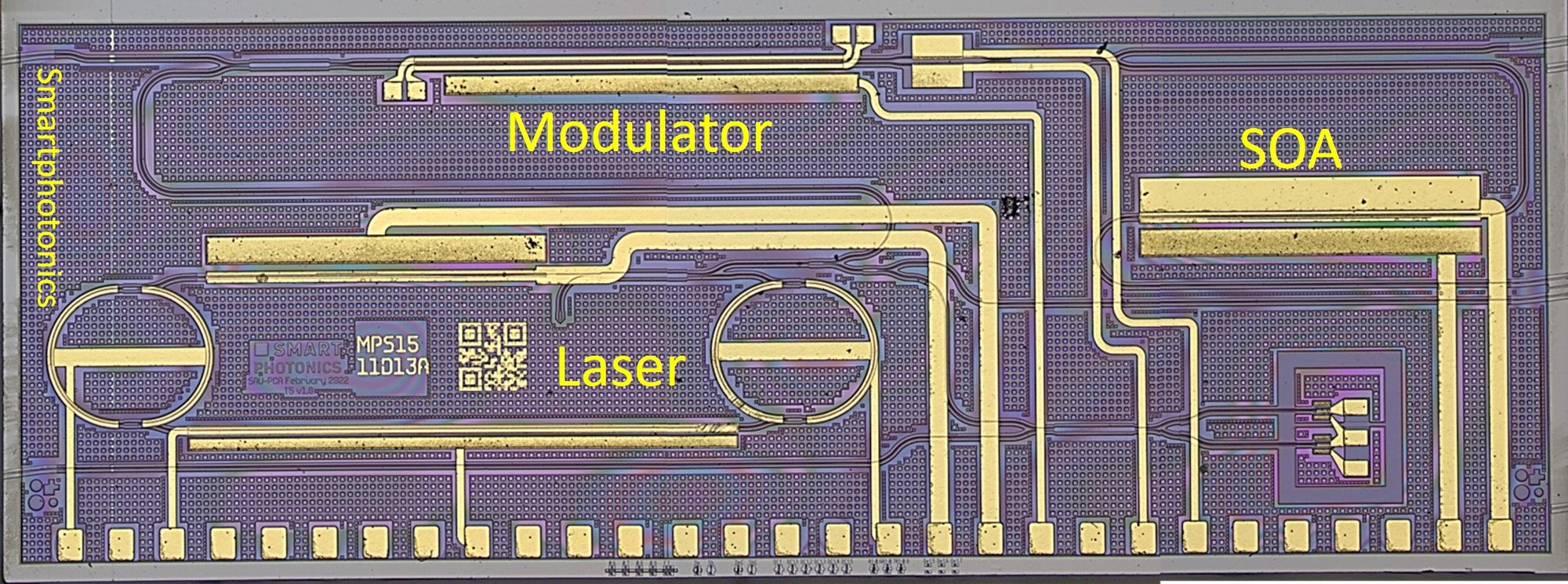

Laser + high speed modulator + SOA

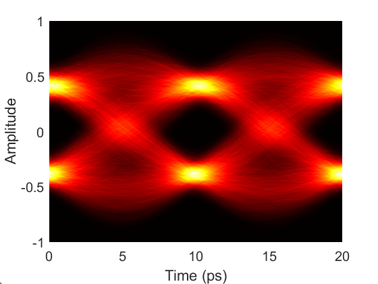

Eye-diagram -4 dBm (100G NRZ B2B)

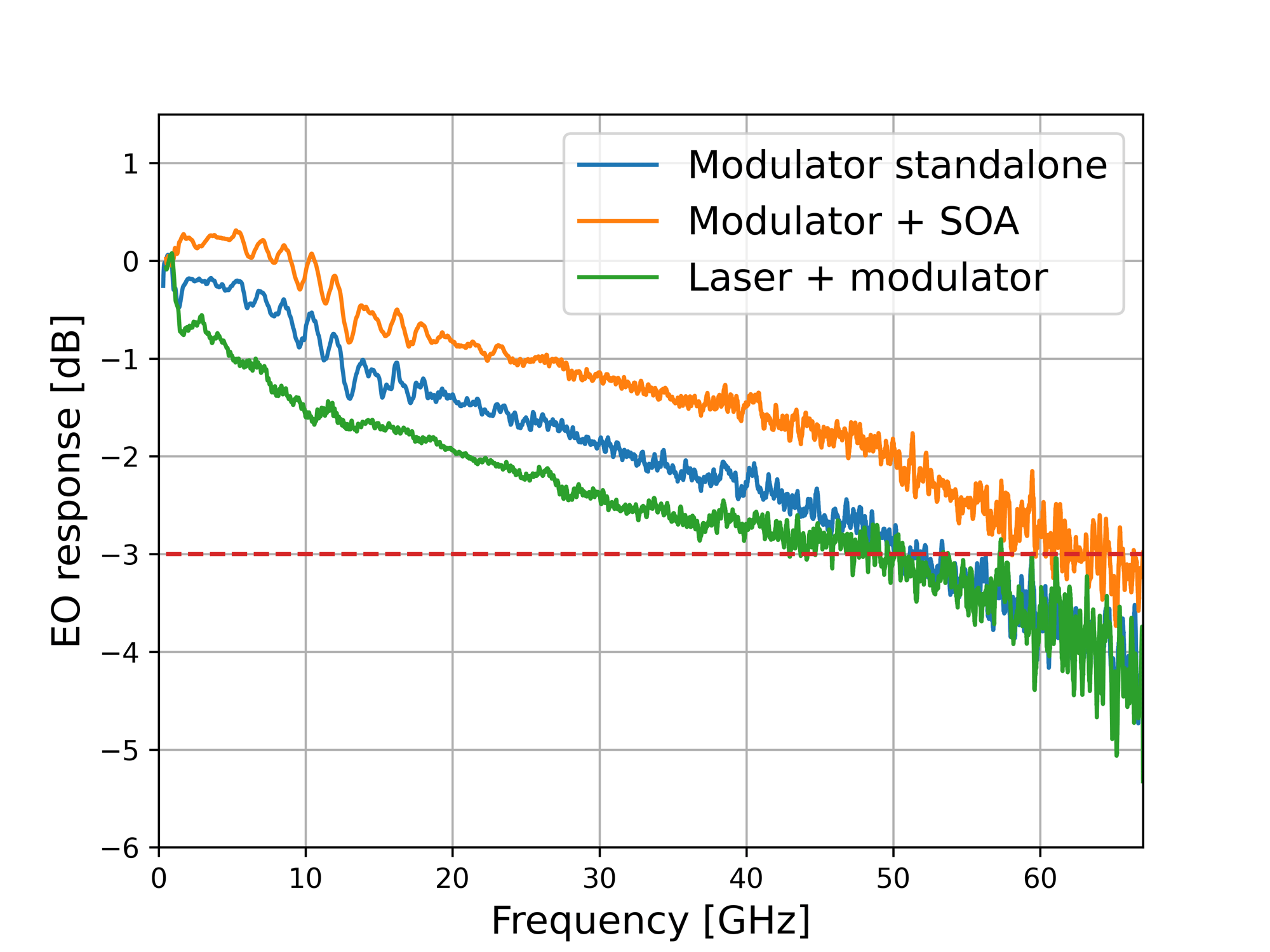

Electro/optical BW of modulator with and without SOA

Yes, please send me the building block specifications overview

Tuneable lasers: The elusive trifecta

Demonstration of 480 Gb/s, 16-QAM transmission

Our partner, Pilot Photonics, has spotlighted our tunable laser performance in Compound Semiconductor magazine (Vol 30, issue 2), showcasing its compatibility with coherent applications through a remarkable demonstration of 480 Gb/s, 16-QAM transmission.

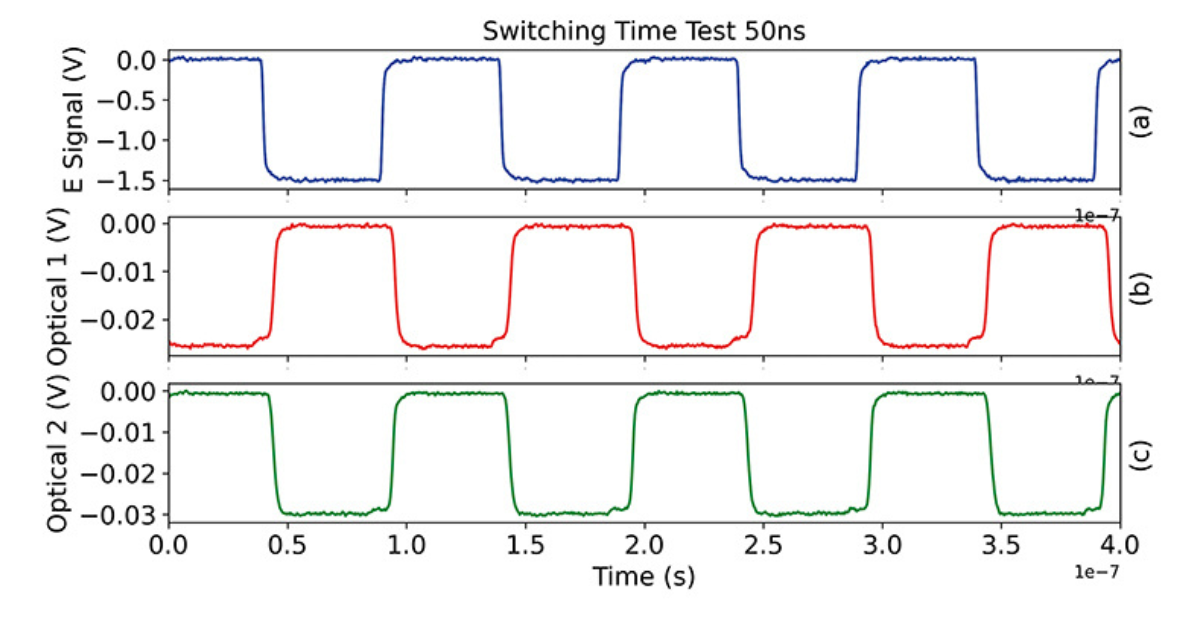

Switching time SMART Photonics laser Pilot Photonics

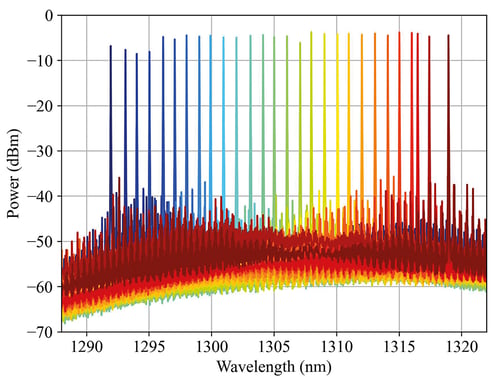

Optical O-band Pilot Photonics

O-Band blog
Enabling high speed access and green datacenters

By Dr. Spiros Mikroulis - SMART Photonics has a vital role in developing next generation chips for datacom and telecom. As the digital population and the global demand for data continues to grow, so does the need for faster and more reliable networks. That’s where the original band (O-band) comes in....
READ MORE

O-band blog Spiros Mikroulos SMART Photonics

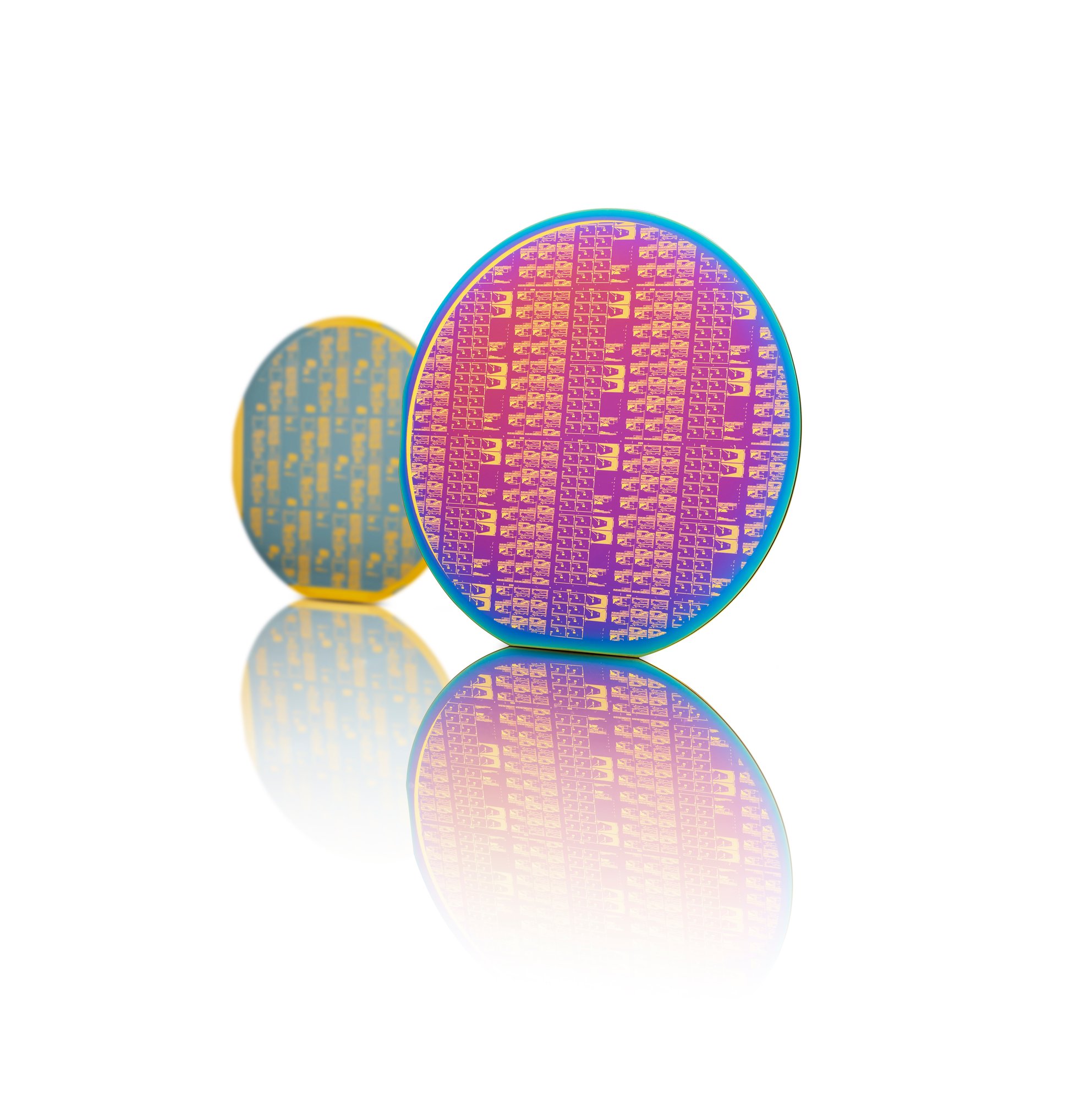

SMART Photonics scaling up 4 inch

SMART Photonics scaling up to 4-inch wafer production
Doubling production capacity

SMART Photonics is taking an important step in becoming the leading foundry for next generation chips. The Dutch foundry has significantly scaled up its production of photonic chips (PICs) by transferring its entire production capability from 3-inch to 4-inch wafer substrates. Confirming its technology leadership, SMART Photonics is one of the first integrated photonics foundries offering 4-inch InP wafer production. The resulting doubling of production rate translates in a lower price per chip, accelerating the commercial roll out of the foundry’s photonic chips.
